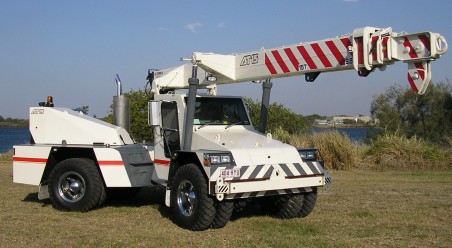

The
all new FRANNA AT-15 provides all the
benefits that are required, to class it as a true general purpose crane.
This Australian designed and built All Terrain Pick & Carry Mobile
crane sets new standards in performance, reliability and quality. From its
exceptional abilities on the most rugged terrain, or travelling at 85 kph
the AT-15 has earned the reputation for delivering whatever is asked of it.
The following features all make the AT-15 an exceptional
crane:
· Synchronized power boom extension and
power pinned manual extension.
·
Mercedes 170Kw turbo
charged & intercooled diesel engine.
·
Allison 5 Speed automatic
transmission
·
2 Speed winch with 3.5
tonne line pull
·
Fully computerised load
moment indicator
·
Under slung winch
assembly and 2/3 part hook block.
·
40° articulation each
side of centre providing a total 80° slewing arc.
·
Exclusive slew brake
attachment allows the operator to slew the crane through 80° whilst the
crane is stationary.
·
40 mm front and 90 mm
rear bumpers with recessed headlight and tail light assembly.
·
Wide stance boom lift
cylinders for maximum operator vision.
·
Hinged engine cover, mid
cover and floor plate for easy serviceability.
·
Upswept exhaust for
minimum noise levels.
·
Large zone tinted front
windscreen, with roof and rear tinted windows.
·
Big forward opening doors
with full length tinted windows for ease of entry and vision.
·
Instrumentation cluster
and well-positioned controls for ease of operation.
·
3B6 Load moment indicator
with audio/visual overload pre-warning
·
Two speed wipers/washers
and heater/demister.
·
In dash air conditioning
standard.
·
Central greasing &
remote air tank drains
·
Mud flaps, work lights
& grab handles.
·
KAB suspension driver's
and passenger seats, including retracting seat belts.
·
Full power orbital
steering/DC emergency steering.
·
Heavy-duty front and rear
bodies.
·
Single Joystick control
for boom and winch movements.
|
