The

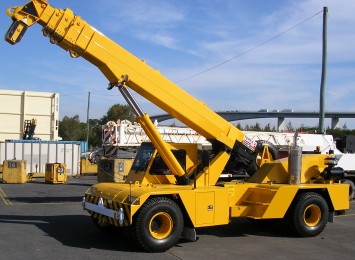

FRANNA MAC 25 pick & carrying incorporates many new features
which enhance safety, driver ergonomics and improved machine operations.
Built for comfort as well as hard work the cabin offers a spacious
interior, a binnacle type dashboard, pilot operated hydraulics and a digital
load indicator. Both the hydraulic oil and fuel tank have been integrated
around the 6 cylinder turbo charged and intercooled engine in the rear
body, with the latest design in adjustable wear pads and boom structure up
front. With this machine you have the power, finesse and versatility to
lift almost anything anywhere.
Here are some of the many features:
· Here are some of the many features:
· Full powered 4 section boom
· Mercedes 205Kw turbo charged &
intercooled diesel engine.
· Allison 6 Speed automatic
transmission.
· Hydraulic winch 2 speed with hook
compensation.
· Synchronized power boom 6 part hook
block.
· Winch line pull with full drum 4.2
tonne & 2 speed winch
· 40° articulation each side of centre
providing a total of 80° of slewing arc.
· Exclusive park brake attachment allows
the operator to slew the Crane through 80° whilst the crane is stationary
and the parking brake is activated.
· 32 mm thick steel front plate, with
fully recessed dual headlights and blinkers.
· Boom head design for maximum clearance
for machinery installation.
· 800 litre front mounted sling and
tackle compartment with opening front and top doors for easy access.
· Total engine cover hinged rearwards
for maximum access to engine and service points.
· Upswept exhaust/chrome muffler for
minimum noise levels.
· Large zone tinted front windscreen.
· Roof, rear and quarter glass windows
are tinted and allow greater visibility.
· Full binnacle type instrumentation and
controls positioned for ease of operation.
· 3B6 Load moment indicator with
audio/visual overload pre-warning.
· 2 speed windscreen wiper, washer and
heater/demister.
· KAB suspension driver's and passenger
seats, including retracting seat belts.
· Full power orbital steering/DC
emergency steering.
· Heavy-duty front and rear bodies with
fully incorporated checker plate mudguards.
· Work lights front and rear, amber
rotating light to rear bonnet.
· Cruise control
|
