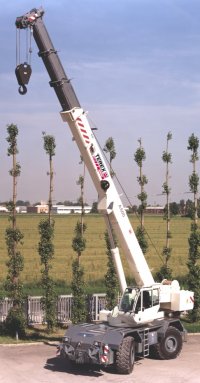

Crane performance data
|
|
|
|
Capacity at 3 m from slewing axis
(CE / 85% SAE J765):
|
60 / 60 t
|
|
|
Boom length (retracted/extended):
|
10.3 / 32.4 m
|
|
|
Boom head height:
|
35.3 m
|
|
|
|
|
|
|
Truck performance data
(Standard
crane in operation conditions: no auxiliary winch and no extensions)
|
|
|
|
Max. travelling speed (on 18.00R25 - A600S tyres):
|
30 km/h
|
|
|
Max. travelling speed (on 23.5R25 tyres):
|
30 km/h
|
|
|
Max. travelling speed (on 26.5R25 - A600L tyres)
|
32 km/h
|
|
|
Max. theoretical ramp during operation
(on 18.00R25 - A600S tyres):
|
170%
|
|
|
Max. theoretical ramp during operation
(on 23.5R25 - A600L tyres):
|
174%
|
|
|
Max. theoretical ramp during operation
(on 26.5R25 - A600L tyres)
|
135%
|
|
|
|
|
|
|
A600S Weights
(Standard
crane: no auxiliary winch and no extensions, on 18.00R25 tyres)
|
|
|
|
1st axle:
|
18.2 t
|
|
|
2nd axle:
|
21.8 t
|
|
|
Total:
|
40 t
|
|
|
|
|
|
|
A600L Weights
(Standard
crane: no auxiliary winch and no extensions, on 23.5R25 tyres)
|
|
|
|
1st axle:
|
18.4 t
|
|
|
2nd axle
|
22.1 t
|
|
|
Total
|
40.5 t
|
|
|
|
|
|
|
Operating speed / times
(Average
reference indicative values)
|
|
|
|
Main winch
(max. speed under direct pull):
|
150 m/min
|
|
|
Auxiliary winch
(max. speed under direct pull):
|
103 m/min
|
|
|
Telescopic boom lifting / lowering:
|
50 / 40 s
|
|
|
Telescopic boom extension / retraction
(10.3 m to 32.4 m):
|
90 / 80 s
|
|
|
Upper structure slewing:
|
30 s
|
|
|
Extension of single outrigger beam:
|
25 s
|
|
|
Extension of single outrigger:
|
35 s
|
